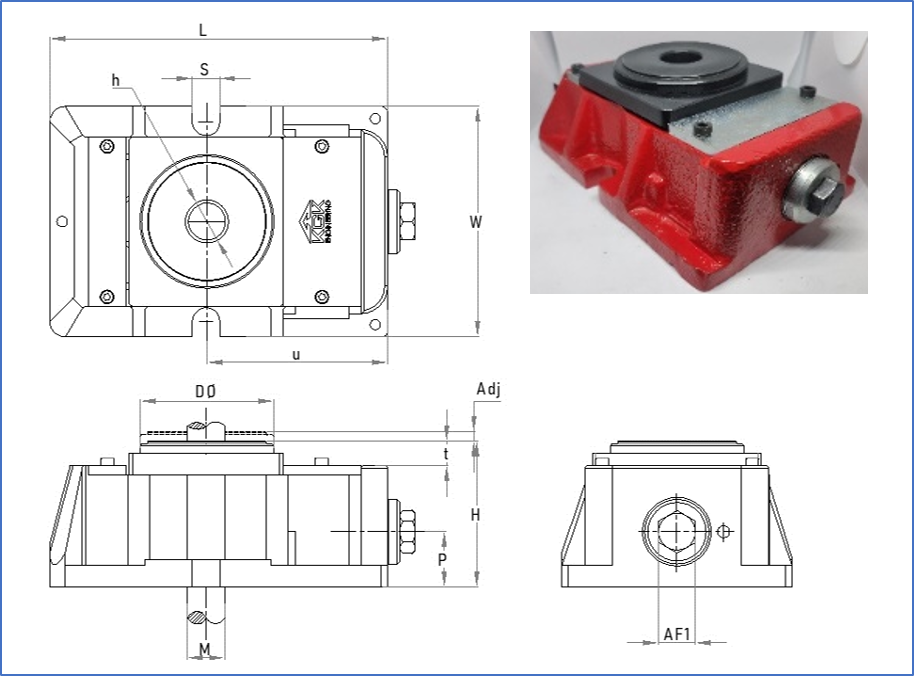

- EZL-1 Series are wedge actuated - suited for M/cs where levelling & its stability is critical to M/c’s performance.
- Ideally suited for HMC, VMC, Lathes, Large Format Machines – VTL, Plano Milling M/cs ….
- Allows for multiple methods of grouting & remote levelling.
- Offers the best rigid support for the M/c with low adjustment torque in a operator friendly orientation.
- M/c sits on a spherical pad which accommodates any angular variation between the floor & M/c base
.

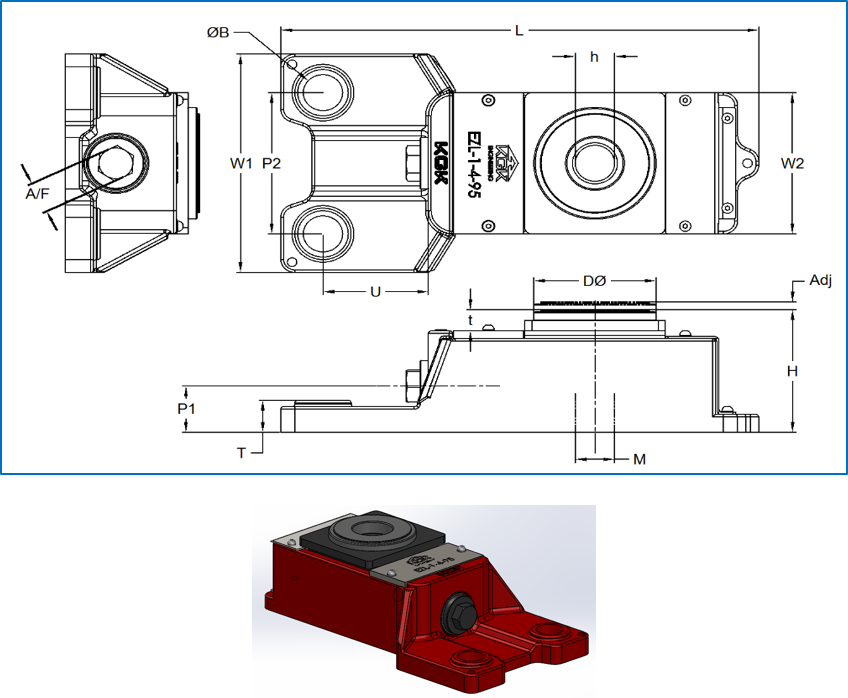

EZL-1 Front Grout Variant
- Used where M/c has to be grouted after installation / levelling.
- Floor can be easily drilled thru the Holes in the base after installation is completed
- Chemical Anchor Bolts are inserted in the drilled holes into the floor & allowed to set (typically overnight).
- M/c is grouted by tightening the Anchor Nuts the following day
- This variant can be retrofitted to M/cs that require grouting because of floor conditions or changed requirements
- Completely eliminates need for elaborate foundation preparation
- M/c sits on a spherical pad which accommodates any angular variations between the floor & M/c base
- Anchor Bolt / Drilling to be arranged by Customer
EZL-1 Series – Accessories / Options
Spacer Pack
Consists of 3 x 5 mm Slotted Spacer which can be inserted during Levelling Process to take care of unusual floor level variations.
Extends Range by 15 mm

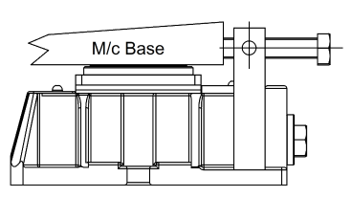

Lateral Adjustment
Allows for horizontal movement of the Machine
Machine Grouting
- Thru Device Grouting or Side Slot Grouting options available
- Anchor Bolt (DIN529F) or Anchor Casting can be provided
- Anchor Bolt Length will be as per Customer Requirement
- M20/M24 Spherical Washer & Nut

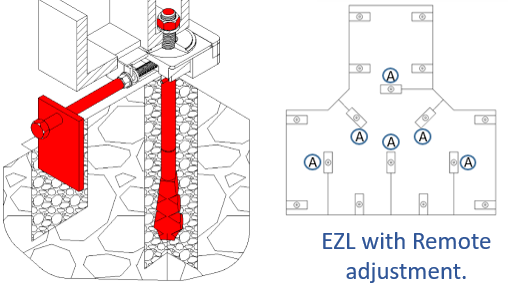

Remote Levelling
Consists of 3 x 5 mm Slotted Spacer which can be inserted during Levelling Process to take care of unusual floor level variations.
Extends Range by 15 mm
Product Series
EZL-1
Conventional - Versatile
EZL-2
Cost Optimized, Versatile
EZL-3
Conventional, Low Cost
EZL-4
Low Height
EZL-5
Levelling Jack
