- EZL-2 Series are cost optimized wedge actuated version of EZL-1 (eg Side Grout & Lateral movement options are not available on this Series).
- Suited for M/cs where levelling & its stability is critical to M/c’s performance. Ideally suited for HMC, VMC, Lathes, Large Format Machines – VTL, Plano Milling M/cs ….
- Allows for thru-device grouting & remote levelling.
- Available in different heights.

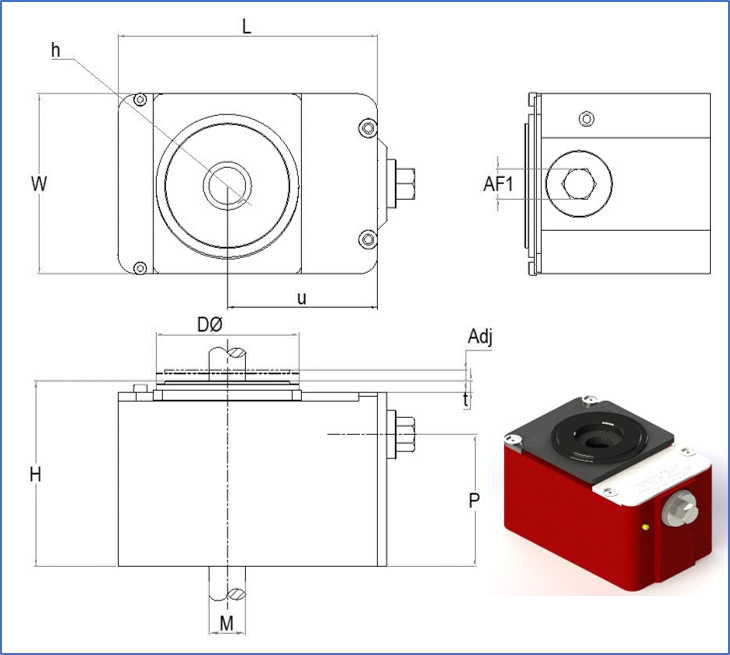

- M/c sits on a spherical pad which accommodates any angular variation between the floor & M/c base
- Offers the best rigid support for the M/c with low adjustment torque in a operator friendly orientation.
EZL-2 Series – Accessories / Options
Spacer Pack
Consists of 3 x 5 mm Slotted Spacer which can be inserted during Levelling Process to take care of unusual floor level variations.
Extends Range by 15 mm
Machine Grouting
- Thru Device Grouting
- Anchor Bolt (DIN529F) or Anchor Casting can be provided
- Anchor Bolt Length will be as per Customer Requirement
- M20/M24 Spherical Washer & Nut

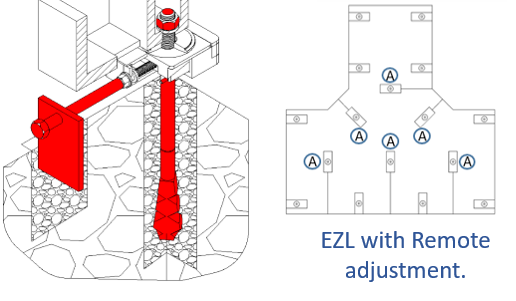

Remote Levelling
- Remote Levelling Option allows EZL to be placed at inaccessible locations & be remotely operated.
- This gives the option to support the machine wherever required giving more flexibility in Machine Design to enhance rigidity.
- Contact us for details
